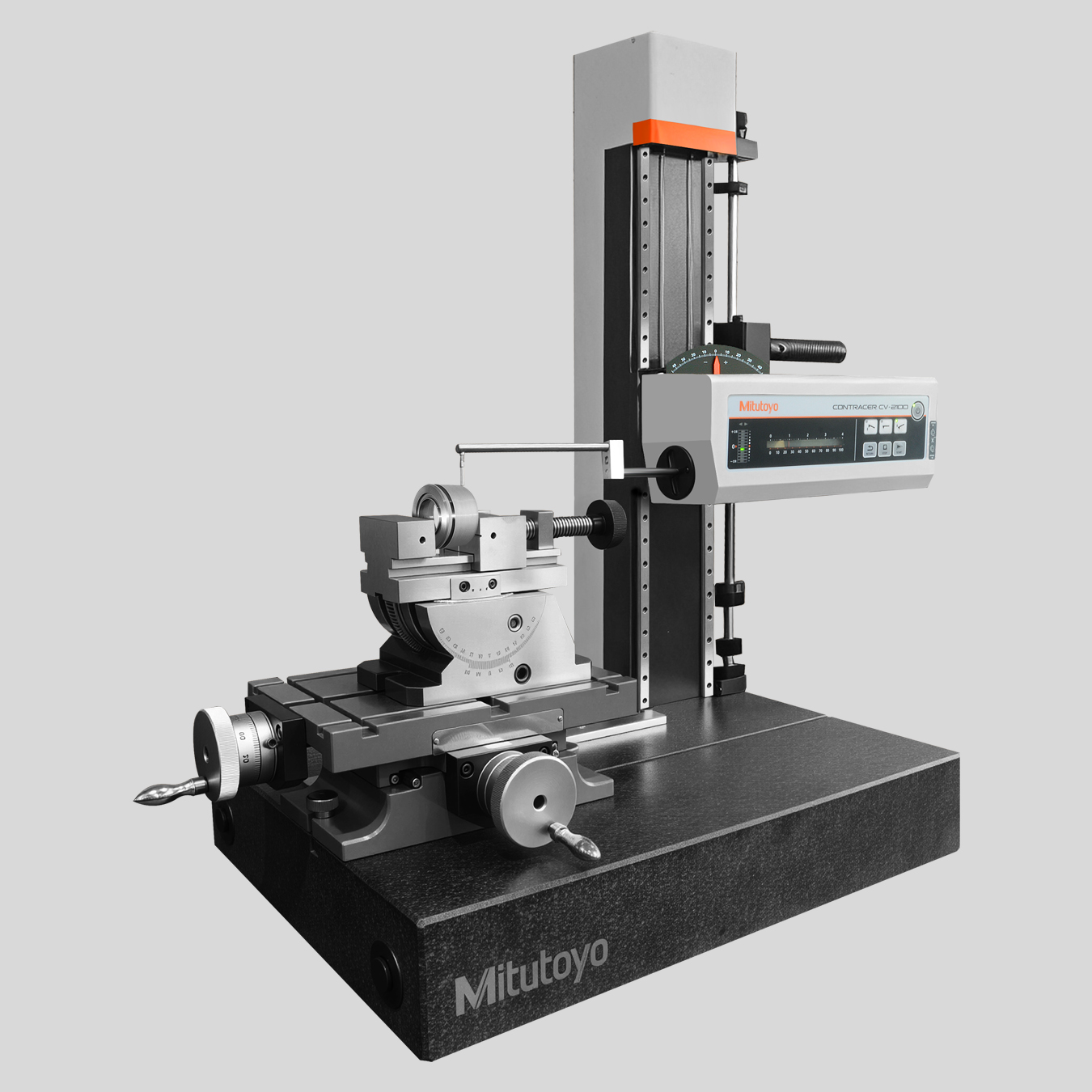

profilometer



It is a high-precision profile measuring instrument with continuous measurement function on both the upper and lower surfaces. The Z-axis resolution reaches 0.02μm, and the X-axis drive speed can reach up to 80mm/s. It is suitable for profile and shape analysis of precision parts.

Feature Highlights

• Double-sided continuous measurement: Simultaneously measures the upper and lower contours of a workpiece, improving efficiency and accuracy.

• One-click quick calibration: Simplifies the cumbersome calibration process, enhancing operational convenience.

• High-precision optical scale: The Z-axis uses an arc-shaped grating scale, and the X-axis uses a linear grating, improving indicating accuracy.

• Tilt surface tracking measurement: Supports specified force measurement, suitable for complex curved or inclined contours.
